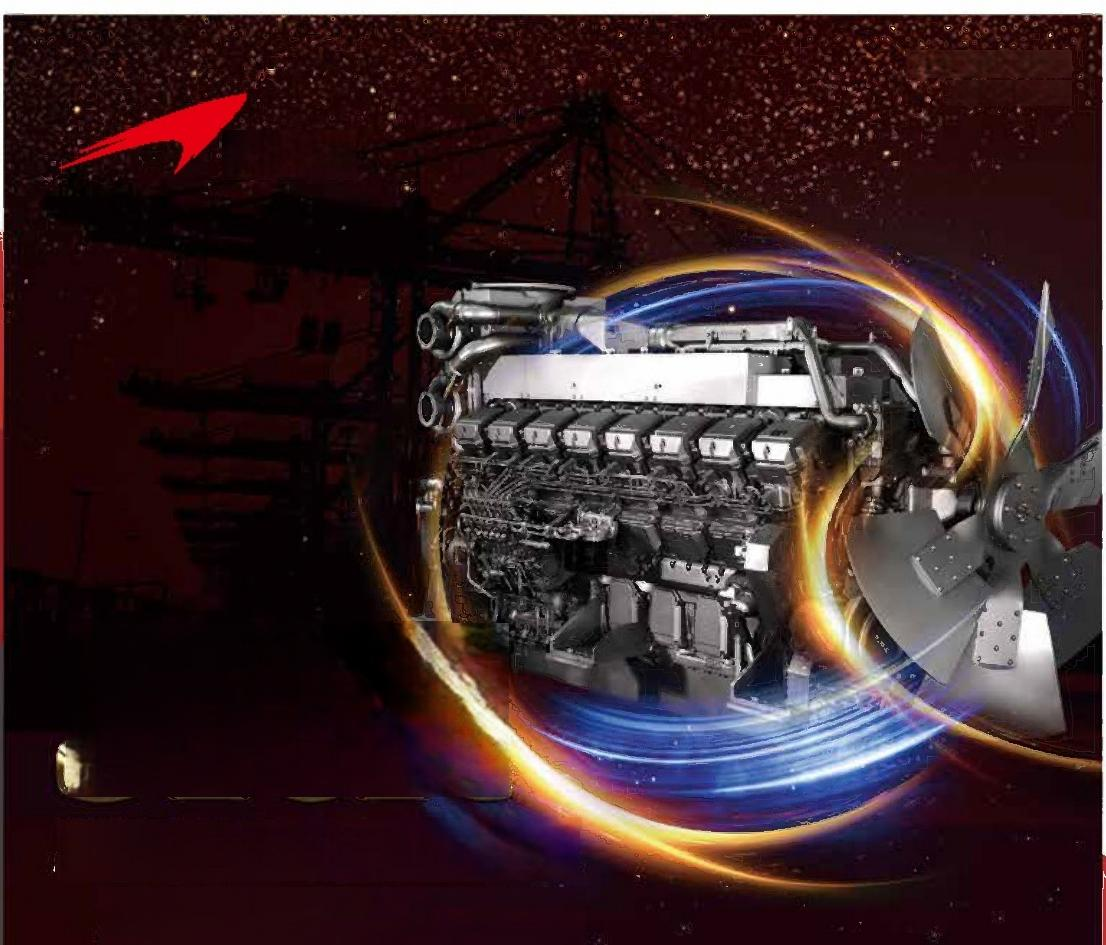

SME S16R-PTA-C Diesel Engine
·High-strength engine block and crankshaft connecting rod system, high reliability with high power.
·Production of high quality parts for engine. The core parts (turbocharger, high pressure fuel pump and fuel injector) are produced by MHI.
·The advanced intake system and fuel system of MITSUBISHI, high fuel injection pressure, good atomization, full combustion, perfect matching of air intake and fuel supply, and improve economic performance and emission performance.
·65L large displacement, high reliability and long service life of diesel engine. Cases: continuous genset, such as field of mine, island.
SME S16R-PTA-C Diesel Engine
TECHNICAL PARAMETERS
|
Model |
|
S16R-PTA-C |
|
Engine Type |
|
Direct injection/4-storke/Water-cooled |
|
Intake Type |
|
Turbo ChargerWater-air intercooler |
|
No.of Cylinders |
|
16-V |
|
Bore*stroke |
mm |
170*180 |
|
Displacement |
L |
65.37 |
|
Comperession Ratio |
|
14.0:1 |
|
Prime Power with fan |
kW |
1450 |
|
Standby Power with fan |
kW |
1590 |
|
Prime power of genset |
kW/KVA |
1370KW(1710KVA) |
|
Standby power of genset |
kW/KVA |
1500KW(1875KVA) |
|
Rated speed |
r/min |
1500 |
|
Type of govemor |
|
Electrical Governor |
|
Fuel Consumption |
L/h |
351 |
|
Exhaust Air pipe diameter |
mm |
358 |
|
Exhaust Gas flow |
m3/min |
337 |
|
Exhaust temperature |
℃ |
520 |
|
Intake Air flow |
m3/min |
127 |
|
Oil total |
L |
230 |
|
Oil consumption rate |
g/kw.h |
0.4 |
|
Flywhee Teeth |
|
193teeth |
|
Flywheel Housing |
|
SAE No.00 |
|
Flywheel |
|
SAE 21in |
|
Dimension(L×W×H) |
mm |
3077*1435*1810 |
|
Gross weight |
Kg |
6759 |
