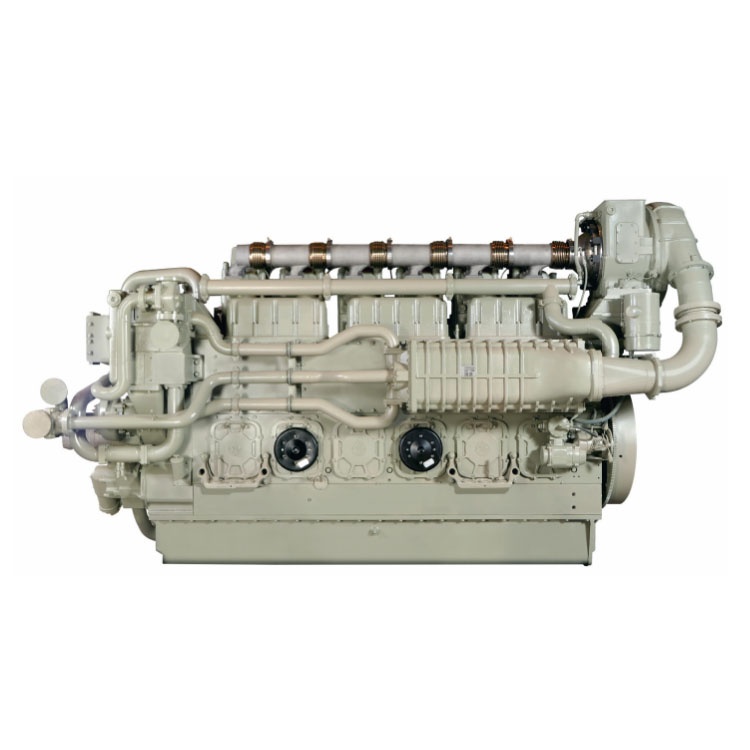

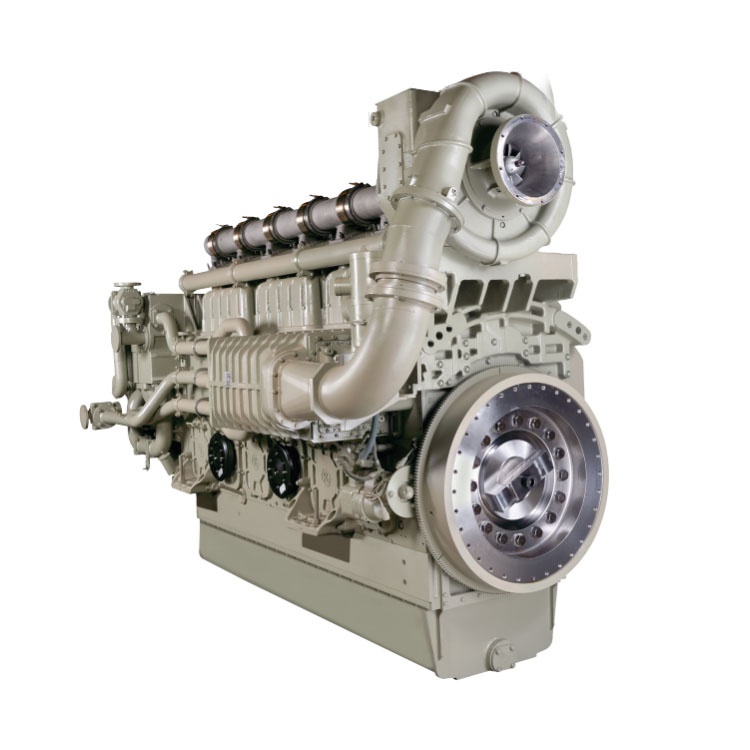

GE’s new L250 inline engine offers a streamlined design that is fuel-efficient and delivers continuous power from 1498 to 2330 kw. The L250 is specifically engineered for marine applications with its accessories mounted on the engine for maintenance ease.
GE L250 Diesel Engine specifications
|
Engine Model |
6L250 |
8L250 |
|
Engine Data |
|
|
|
Number of cylinders |
6 |
8 |
|
Stroke cycle |
4 |
4 |
|
Cylinder arrangement |
inline |
inline |
|
Bore |
250 mm (9.84 in) |
250 mm (9.84 in) |
|
Stroke |
320 mm (12.60 in) |
320 mm (12.60 in) |
|
Compression ratio |
15.7 |
15.7 |
|
Power Output at 900 rpm |
|
|
|
Continuous |
1498 kw (2009 hp) |
1998 kw (2679 hp) |
|
Maximum |
1648 kw (2210hp) |
2198 kw (2947 hp) |
|
Power Output at 1000 rpm |
|
|
|
Continuous |
1664 kw (2232 hp) |
2219 kw (2976 hp) |
|
Maximum |
1831 kw (2455 hp) |
2441 kw (3274 hp) |
|
Power Output at 1050 rpm |
|
|
|
Continuous |
1748 kw (2344 hp) |
2330 kw (3125 hp) |
|
Maximum |
1922 kw (2578 hp) |
2564 kw (3438 hp) |
|
Engine Dimensions |
|
|
|
Length |
5095 mm (200 in) |
5985 mm (235 in) |
|
Width |
2032 mm (80 in) |
2032 mm (80 in) |
|
Height w/deep sump |
3363 mm (132 in) |
3363 mm (132 in) |
|
Height w/shallow sump |
2962 mm (116 in) |
2962 mm (116 in) |
|
Crankshaft center line to deep sump |
1341 mm (53 in) |
1341 mm (53 in) |
|
Crankshaft center line to shallow sump |
940 mm (37 in) |
940 mm (37 in) |
|
Crankshaft center line to mounting feet |
308 mm (12 in) |
308 mm (12 in) |
|
Exhaust diameter |
457 mm (18 in) |
457 mm (18 in) |
|
Dry weight |
15,909 kg (35,000 lbs) |
19,090 kg (42,000 lbs) |
